Plastic Body Limit Switches

Altech Switch Catalog

TYPES

  • Keyed Safety Switches
  • Solenoid Locking Safety Switches
  • Hinged Safety Switches
  • Non-Contact Safety Switches
  • Safety Rope Pull Switches
  • Standard Rope Pull Switches
  • Double Sided Rope Pull Switches
  • Safety Relays

For other Safety Products click below:

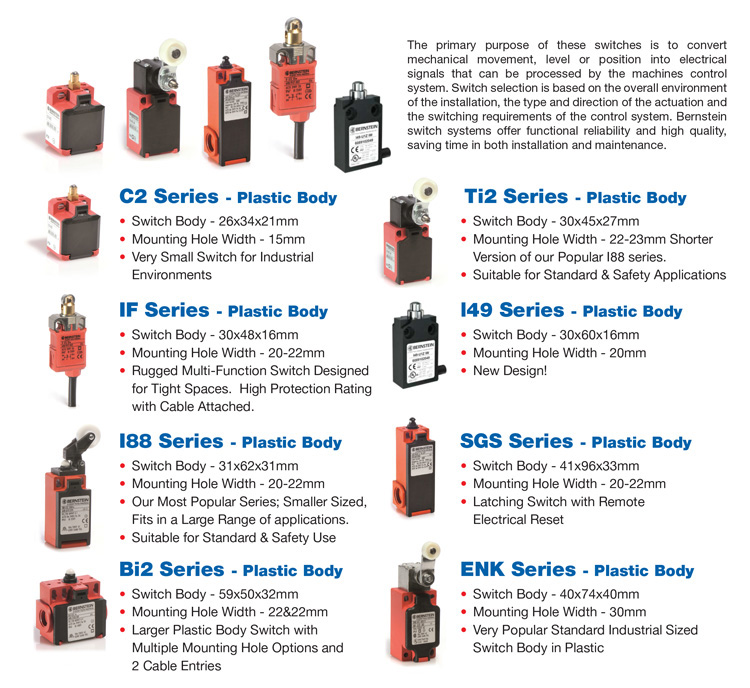

Plastic Body Limit Switches - click for introduction PDF
for Position, End of Travel, Production Detection & Safety Application
M49

C2 Series

  • Very small dimensions
  • 2 positive break contacts
  • Front- and top mounting
  • Different actuators

Click to download this catalog section

M49 drawing
GC

TI2 Series

  • Compact dimensions
  • 2 contacts, 1 or 2 positive break contacts
  • Protection class IP65
  • Dierent actuators
  • Snap-on cover can be released with a screwdriver

Click to download this catalog section

GC drawing
MN78

IN49 Series

  • Flat and compact design
  • Pre-installed connecting cable (1m length)
  • Top-mounting versions available
  • Cable outlet on the side or at the bottom
  • High protection class IP67
  • Suitable for safety applications

Click to download this catalog section

MN78 drawing
SN2

IN62, IN65 & I81 Series

  • High reliability at low currents (1 mA)
  • Protection class IP67
  • Hinged snap-on cover
  • Self cleaning contacts
  • Mechanical life: 30 million switching cycles

Click to download this catalog section

Click to download separate switches and actuators

Click to download Old Series / New Series Cross Reference





SN2 drawing

Effective July 1, 2021, Bernstein will be discontinuing their I88 series plastic body limit switches. These will be replaced by the new IN65 series. Orders can be placed for the I88 series until June 30, 2021, after that these switches will only be available while our supply lasts.

The IN65 limit switch offers many technical advantages including metal mounting surfaces, tool free actuator changes, low current switching capabilities and improved protection ratings and mechanical life. Product information on the new IN65 series, including a cross reference spreadsheet, is available on our website in the Plastic Limit Switch section.

Click for cross reference.

D

IN73 Series

  • High reliability at low currents (1 mA/24 VDC)
  • Up to 4 contacts
  • Actuator and installation collar with mounting holes made of metal
  • Easy turning (8 x 45°) and changing of the actuators without a tool
  • Standard switch/actuator according to DIN EN 50041
  • Protection class IP66 and IP67 according to EN 60529

Click to download this catalog section

Click to download separate switches and actuators

Click to download Old Series / New Series Cross Reference

D drawing
BI2 Series

BI2 Series

  • Protection class IP65 according to VDE 0470 T1
  • Enclosure and cover PA 6, self-extinguishing (UL-94 V0)
  • Actuator turnable by 4 x 90°
  • Cable entry 2 x M16 x 1.5
  • Connection designation conforming to DIN EN 50013

Click to download this catalog section

D drawing
Accessories

Accessories

  • Connector Kits
  • NPT Adaptors
  • Cable Glands



Click to download Connector Kits

Click to download Cable Glands & Adpters



Technical Information

Click to download this catalog section



NEW IN65 IN62 Limit Switches Video
