Universal Monitor DO-1 for Modbus



Altech Industrial Enclosures



Simple Monitoring Device for your business

No Subscription • No License

Features

  • Monitoring / alerting / data collecting / analyzing / diagnosing
  • Universal application at low cost
  • Monitoring up to 128 Modbus RTU / TCP devices
  • Web based software included
  • Do-it-yourself - easy configuration
  • Individual Dashboard creation
  • Extract filters for data to Excel or csv files
  • Individual alert or event settings with email notifications
  • Real time clock with 30 days battery backup
  • Dual power input
  • 5GB internal data storage / 128GB external
  • Compact design with optional DIN rail adapter
  • WiFi connection, Bluetooth optional
  • Custom features or functions on request

Click for datasheet.

Click for PDF catalog file.

Click here for full Manual.

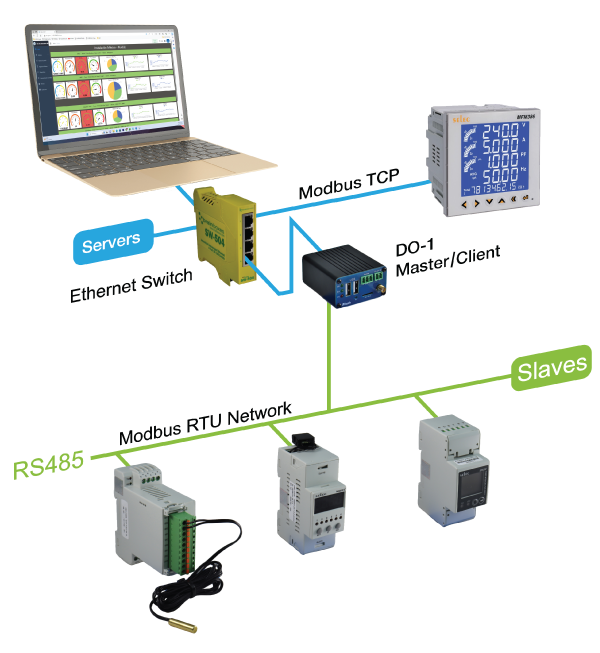

D0-1 diagram

Modbus Monitor Manual



Altech Industrial Enclosures



DO1 Universal Monitor
Package Contents



  • 1x Universal Monitor (DO-1)

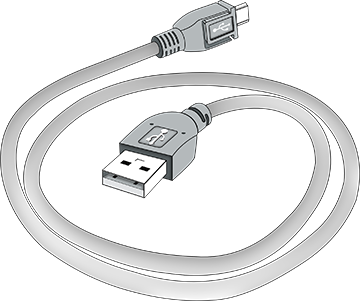

  • 1x USB 2.0 Type-A / USB 2.0 Micro-B Cable
  • 1x Antenna dust cap
  • 2x USB Type-A dust caps
  • 1x 2-pole connector with screw terminals
  • 1x 3-pole connector with screw terminals
cable

connectors



panel1

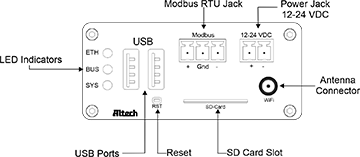

Front View of DO-1




panel1

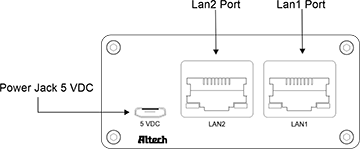

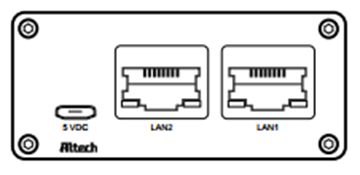

Back View of DO-1




panel1

Connectors and Indicators on the DO-1



panel1

Connectors and Indicators on the DO-1




DO-1 Detail Information

Component Description
LED ETH Lights up green when the connection to the Ethernet network is established
LED BUS Flashes green in time with the bus cycle time of the internal Modbus
LED SYS Flashes red when the DO-1 is in operation
USB USB ports are provided for future use
Modbus RTU Jack Connection of the Modbus RTU devices to the internal Modbus of the DO-1
12-24V DC Power Jack Main power supply of the DO-1, 12-24V DC voltage
Antenna Connector WiFi antenna connection possibility provided for later use
SD Card Slot For SD cards up to 128 GB
Reset Causes a software restart after an operation of 5 seconds
Power Jack 5V DC Auxiliary power supply 5V DC voltage
LAN1 Port Ethernet network connection 1
LAN2 Port Ethernet network connection 2

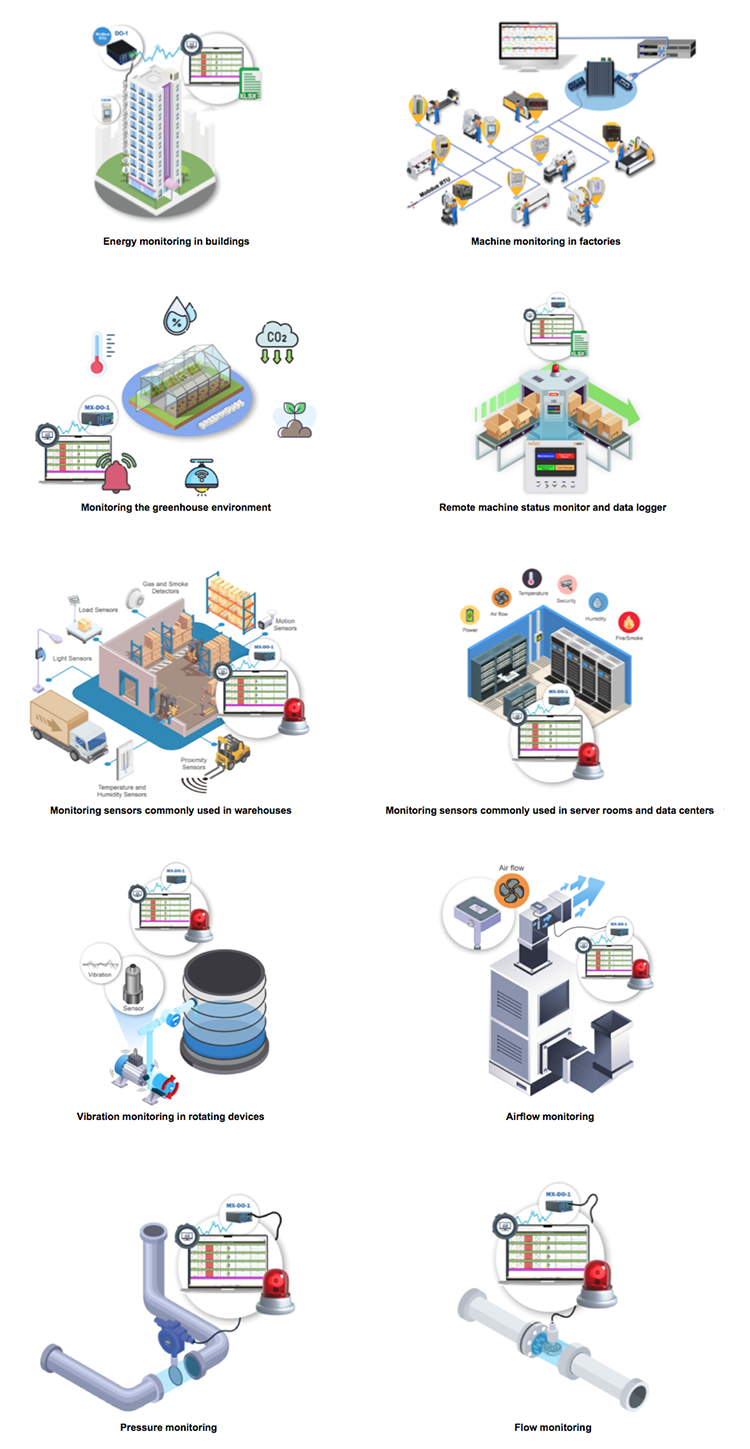

D0-1 Applications




For more information contact Altech at:
908-806-9400 • 908-806-9490 (FAX) • info@altechcorp.com • 35 Royal Road, Flemington, NJ 08822
