Motor Disconnect Switches

Click here
for entire online catalog.

FEATURES

  • One of the smallest 80A switches in the industry
  • Advanced switch technology (use of silver contacts ensures safe and durable operation)
  • Across the line, motor starting - up to 75hp/600V
  • General Use Rating - 16A to 150A/600V
  • Available as rotary switches for extended or direct handle
  • Toggle switches
  • Non-fused switch
  • Short Circuit withstand Ratings 10kA with back-up fuse
  • DIN Rail and panel mount available
  • Comprehensive range of accessories includes Door Mounting Kits & Fuse Holder
  • Snap on auxiliary contacts
  • Enclosed switches with UL 4, 4X Type 4x rating
  • AC Motor Across-the-line
  • AC General Use
  • Horsepower Ratings
  • DIN Rail Mount
  • Competively Priced

UL98 Disonnect Switch

Click for OUR NEW
6 page PDF CATALOG.
Altech UL98 Disconnect Switch Catalog



Compact and Durable DC Disconnect Switches

Robots, battery powered transports, and portable lab equipment are being used on the factory floor and in the laboratory, which means they are in close proximity to humans. An AC disconnect switch separates the inverter from the electrical grid, while a DC disconnect switch separates the equipment from the DC source. In the past disconnect switches were mounted to walls and or electrical cabinets where they are available for emergency use. With smaller and smaller real estate like that of a small robot, the disconnect switch is often panel mounted close to the device.

Click to read white paper.



Altech Disconnect Switches

new

Extended/Direct Handle Motor Disconnect Switch

  • Dual AC/DC rated; click for the data sheet
  • Integrated Base and DIN-Rail Mounting
  • Loadsafe LSF Series
  • Switch make/break operation is independent from operator’s actuation speed
  • Silver contacts ensures safe and durable operation
  • Safety certification PENDING

new

Extended / Direct Handle Motor Disconnect Switch

  • Dual AC/DC rated; click for the data sheet
  • Integrated door or side panel mounting
  • Rear facing terminals for easy installation
  • Loadsafe RT Series
  • Switch make/break operation is independent from operator’s actuation speed
  • Silver contacts ensures safe and durable operation
  • UL Disconnect Switches 16-40 A
  • UL 60947-4-1
Extended / Direct Handle Motor Disconnect Switch

The KU/VKA...N series can be used with extended and direct handles.

  • 3-4 poles
  • General Purpose Current: 25A - 150A
  • Maximum Voltage: 600V AC
  • Motor FLA @ 480V AC: 17.5A - 34A
  • Motor FLA @ 600V AC: 11A - 83A
  • 1 Phase and 3 Phase Horsepower Rating
  • Short Circuit withstand Rating at 600V with Max. Fuse
  • Terminal Size Acceptability: 14-8AWG - 4-1/0AWG
Extended Handle Accessories
  • Door Interlock Handles
  • Door Interlock Shaft
  • Auxiliary Switches
  • Fuse Holder
  • Direct Handles
  • Door Mountng Kits
    DRILL TEMPLATES:
    LK10
    LK11
    OKA 0V LK2
    OKA KU LK10
  • Mounting Alternatives - Aluminum DIN Rail
Extended / Direct Handle Motor Disconnect Switch

The KUE series only requires an additional cover plate (see below) which makes the switch IP20 touch proof.

  • 3 poles
  • General Purpose Current: 25A - 60A
  • Maximum Voltage: 600V AC
  • Motor FLA @ 480V AC: 17.5A - 34A
  • Motor FLA @ 600V AC: 11A - 27A
  • 1 Phase and 3 Phase Horsepower Rating
  • Short Circuit withstand Rating at 600V with Max. Fuse
  • Terminal Size Acceptability: 14-8AWG - 12-4AWG

Suitable Accessories

  • Cover Plate
Extended / Direct Handle Motor Disconnect Switch

The EVA series includes a cover plate.

  • 3 poles
  • General Purpose Current: 80A - 150A
  • Maximum Voltage: 600V AC
  • Motor FLA @ 600V AC: 47A - 83A
  • 1 Phase and 3 Phase Horsepower Rating
  • Short Circuit withstand Rating at 600V with Max. Fuse
  • Terminal Size Acceptability: 4-1/0AWG
Polycarbonate Enclosed Motor Disconnect Switch

These enclosed switches can be used locally at the motor.

  • Can be used locally at the motor
  • UL Type 4X
  • IEC IP65 Protection Level
  • UV resistant
  • Resistant to many chemicals
  • Lockable - Defeatable Handle

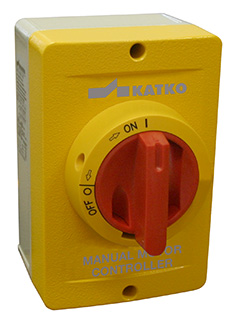

Aluminum Enclosed Motor Disconnect Switch

These enclosed switches can be used locally at the motor.

  • UL Type 4
  • Excellent in harsh weather conditions
  • UV resistant
  • Resistant to many chemicals
  • IP66 Protection Level
  • Lockable and Defeatable Handle
Sheet Metal Enclosed Motor Disconnect Switch

These enclosed switches can be used locally at the motor.

  • UL Type 4
  • Excellent in harsh weather conditions
  • Resistant to many chemicals
  • Corrosion and UV resistant
  • IP65 Protection Level
  • Lockable - Defeatable Handle

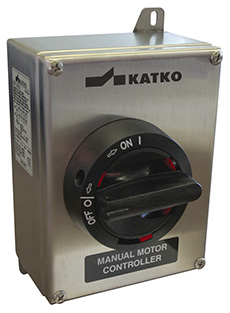

Stainless Steel Enclosed Motor Disconnect Switch

These enclosed switches can be used locally at the motor.

  • UL Type 4X
  • Ideal where chemicals are used for cleaning and maintenance such as food processing and breweries
  • Mining is another application area
  • Stainless Steel (Grade AISI 316)
  • Corrosion Resistant
  • IP66 Protection Level
  • Lockable - Defeatable Handle



NEW PRODUCT

Altech’s new UL Type 4X Stainless Steel (AISI 316) Safety Switch enclosures are ideal for hygienic and harsh environments such the food and pharmaceutical industries. They are easy to install and clean, acid proof and pad lockable. They range from 16 - 80 Amps. One version has an angled rain hood design.

CLICK FOR PDF SPECIFICATION FILE.

Stainless Disconnect Enclosure



VIDEO - Altech Corp. Motor Disconnect Switches

VIDEO - Altech Corp. Motor Disconnect Switch Mounting Options

UL98 Disconnect Switch Video







CAD files

Part Number 2D

3D

Note: a 3D application is needed to view these files. Contact Altech if you
need assistance.

EVA3100 + K/EVA EVA3P_K_EVA.dxf eva_k_eva.igs
EVA3100 + K/EVA Y/R EVA3P_K_EVA.dxf eva_k_eva.igs
EVA3100 + K/EVAB EVA3P_K_EVA.dxf eva_k_eva.igs
EVA3125 + K/EVA EVA3P_K_EVA.dxf eva_k_eva.igs
EVA3125 + K/EVA Y/R EVA3P_K_EVA.dxf eva_k_eva.igs
EVA3160 + K/EVA EVA3P_K_EVA.dxf eva_k_eva.igs
EVA3160 + K/EVA Y/R EVA3P_K_EVA.dxf eva_k_eva.igs
EVA380 + K/EVA EVA3P_K_EVA.dxf eva_k_eva.igs
EVA380 + K/EVA Y/R EVA3P_K_EVA.dxf eva_k_eva.igs
K/KU3P KU3P_4P_K_KU.dxf eva_k_eva.igs
K/KU3P Y/R KU3P_4P_K_KU.dxf eva_k_eva.igs
K/KU4P KU3P_4P_K_KU.dxf eva_k_eva.igs
K/KU4P Y/R KU3P_4P_K_KU.dxf eva_k_eva.igs
K/VKA3-4P VKA3P_K_VKA.dxf

VKA4P_K_VKA.dxf

X
K/VKA3-4P Y/R VKA3P_K_VKA.dxf

VKA4P_K_VKA.dxf

X
KEA325UL; KEA325UL Y/R;
KEA425UL; KEA425UL Y/R;
A2.dxf X
KEA340UL; KEA340UL Y/R;
KEA440UL; KEA440UL Y/R;
A2.dxf X
KEA360UL; KEA360UL Y/R;
KEA460UL; KEA460UL Y/R;
A3.dxf X
KEA380UL; KEA380UL Y/R;
KEA480UL; KEA480UL Y/R;
A3.dxf X
KEA3100UL; KEA3100UL Y/R;
KEA4100UL; KEA4100UL Y/R;
A3.dxf X
KEA3125UL; KEA1325UL Y/R;
KEA4125UL; KEA4125UL Y/R;
A3.dxf X
KEM3100L MF10.dxf X
KEM3100L Y/R MF10.dxf X
KEM3125L MF10.dxf X
KEM3125L Y/R MF10.dxf X
KEM3150L MF11UL.dxf X
KEM3150L Y/R MF11UL.dxf X
KEM325UL U2.dxf X
KEM325UL Y/R U2.dxf X
KEM340UL U2.dxf X
KEM340UL Y/R U3.dxf X
KEM360UL U3.dxf X
KEM360UL Y/R U3.dxf X
KEM380UL U3.dxf X
KEM380UL Y/R U3.dxf X
KER3100UL H32.dxf X
KER3100UL Y/R H32.dxf X
KER3125UL H32.dxf X
KER3125UL Y/R H32.dxf X
KER325UL

H23.dxf

U2.igs
KER325UL Y/R H23.dxf U2.igs
KER340UL H23.dxf U3.igs
KER340UL Y/R H23.dxf U3.igs
KER360UL H32.dxf U3.igs
KER360UL Y/R H32.dxf U3.igs
KER380UL H32.dxf U3.igs
KER380UL Y/R H32.dxf U3.igs
KET325UL; KET325ULY/R;
KET425UL; KET425ULY/R;
TR007.dxf X
KET340UL; KET340ULY/R;
KET440UL; KET440ULY/R;
TR007.dxf X
KET360UL; KET360ULY/R;
KET460UL; KET460ULY/R;
TR01.dxf X
KET380UL; KET380ULY/R;
KET480UL; KET480ULY/R;
TR01.dxf X
KET3100UL; KET3100ULY/R;
KET4100UL; KET4100ULY/R;
TR01.dxf X
KET3125UL; KET3125ULY/R;
KET4125UL; KET4125ULY/R;
TR01.dxf X
KET3150UL; KET3150ULY/R;
KET4150UL; KET4150ULY/R;
TR02.dxf X
KKV 332 X X
KKV 332CC X X
KU316N KU3PN.dxf ku3pN.stp
KU325N KU3PN.dxf ku3pN.stp
KU340N KU3PN.dxf ku3pN.stp
KU363N KU3PN.dxf ku3pN.stp
KU416N KU4PN.dxf X
KU425N KU4PN.dxf X
KU440N KU4PN.dxf X
KU463N KU4PN.dxf X
KUE316 KUE3P_R_K.dxf X
KUE325 KUE3P_R_K.dxf X
KUE340 KUE3P_R_K.dxf X
KUE363 KUE3P_R_K.dxf X
KV 10x38 KV10x38.dxf X
KV 10x38 CC KV10x38.dxf X
L100AD11-ST L_100_300_AD11.dxf L=100AD11_ST.igs
L200AD11-ST L_100_300_AD11.dxf L=200AD11_ST.igs
L300AD11-ST L_100_300_AD11.dxf L=300AD11_ST.igs
LK10 UL LK10.dxf

LK10_shaft_assembly.dxf

LK10.igs
LK10 Y/R UL LK10.dxf

LK10_shaft_assembly.dxf

LK10.igs
LK11 U LK11.dxf

LK11_shaft_assembly.dxf

LK11.igs
LK11 Y/R U LK11.dxf

LK11_shaft_assembly.dxf

LK11.igs
OKA 0.V X OKA_0V_Y_R.igs
OKA 0.V Y/R X OKA_0V_Y_R.igs
OKA 1.V X OKA_0V_Y_R.igs
OKA 1.V Y/R X OKA_0V_Y_R.igs
OKA 2.V X OKA_0V_Y_R.igs
OKA 2.V Y/R X OKA_0V_Y_R.igs
OKA/KU LK10 OKA_KU_LK10.dxf OKA_LK10.igs
OKA/KU LK10 1.V OKA_KU_LK10.dxf OKA_LK10.igs
OKA/KU LK10 1.V Y/R OKA_KU_LK10.dxf OKA_LK10.igs
OKA/KU LK10 2.V OKA_KU_LK10.dxf OKA_LK10.igs
OKA/KU LK10 2.V Y/R OKA_KU_LK10.dxf OKA_LK10.igs
OKA/KU LK10 Y/R OKA_KU_LK10.dxf OKA_LK10.igs
OKA/KU4P LK10 X OKA_LK10.igs
OKA/KU4P LK10 1.V X OKA_LK10.igs
OKA/KU4P LK10 1.V Y/R X OKA_LK10.igs
OKA/KU4P LK10 2.V X OKA_LK10.igs
OKA/KU4P LK10 2.V Y/R X OKA_LK10.igs
OKA/KU4P LK10 Y/R X OKA_LK10.igs
OKA/VKA 0.V X OKA_VKA3P_LK11.igs
OKA/VKA 0.V Y/R X OKA_VKA3P_LK11.igs
OKA/VKA 1.V X OKA_VKA3P_LK11.igs
OKA/VKA 1.V Y/R X OKA_VKA3P_LK11.igs
OKA/VKA 2.V X OKA_VKA3P_LK11.igs
OKA/VKA 2.V Y/R X OKA_VKA3P_LK11.igs
OKA/VKA4P 2.V X X
OKA/VKA4P 0.V X X
OKA/VKA4P 0.V Y/R X X
OKA/VKA4P 1.V X X
OKA/VKA4P 1.V Y/R X X
OKA/VKA4P 2.V Y/R X X
VKA3100N VKA3PN.dxf VKA3PN.igs
VKA3125N VKA3PN.dxf VKA3PN.igs
VKA3160N VKA3PN.dxf VKA3PN.igs
VKA380N VKA3PN.dxf VKA3PN.igs
VKA4100N VKA4PN.dxf X
VKA4125N VKA4PN.dxf X
VKA4160N VKA4PN.dxf X
VKA480N VKA4PN.dxf X
