Technical information

Catalog Number:

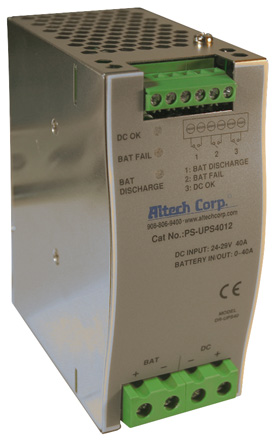

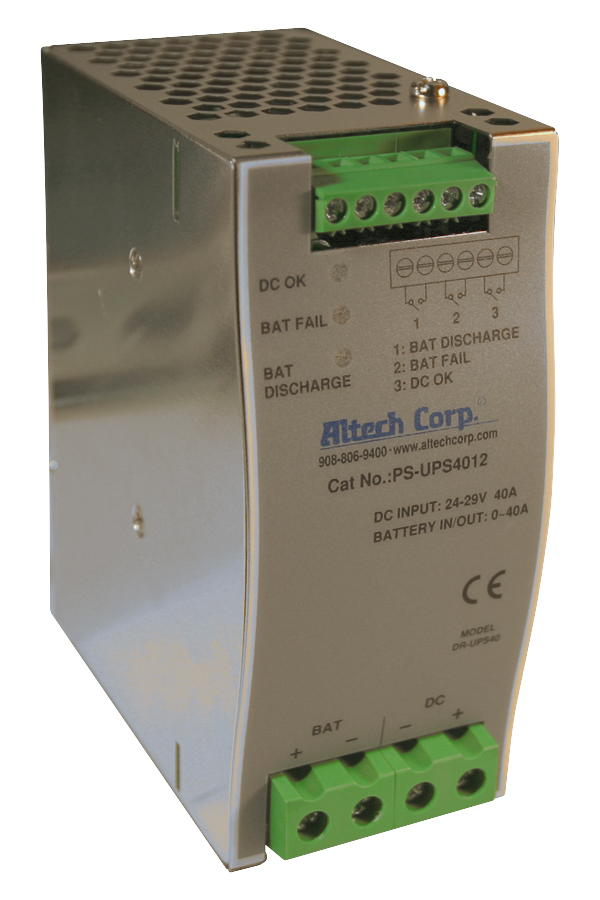

PS-UPS40

• Specification sheet
• Product Photo JPEG
• Product Photo TIF
• Drawing – DWG format
• Drawing – DXF format
• Drawing – PDF format
• Drawing Top View – DWG format
• Drawing Top View – DXF format
• 3D CAD-Drawing – STEP format

NOTE: To view specific files you will need applications such as CADviewer and Acrobat.

Features:

• Battery controller for DIN Rail UPS system
• Parallel connection to DC BUS
• Suitable for 24V system up to 40A
• Installed on DIN Rail TS35/ 7.5 or 15
• Built-in battery test function
• Battery polarity protection
• Relay contact signal output and LED indicator for DC BUS OK,
• Battery fail, and battery discharge
• Cooling by free air convection
• 3 year warranty
