Solenoid Locking Safety Switches
Montiors and Locks Hard Guarding Gates, Panels & Doors

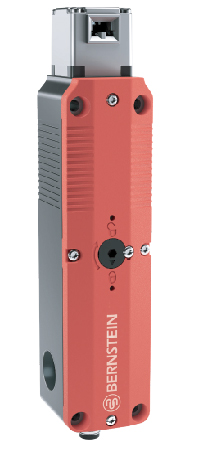

M49

SLC Series

  • Lightweight yet robust: Hybrid of metal and plastic
  • Flexible contact assembly
  • Integrated manual release
  • Symmetrical design
  • Five actuating positions
  • Rotatable head ( 4 × 90° )
  • Fail-safe guard locking system
  • Optional emergency release
  • Optional rear escape release
  • M12 connection available

Click to download this catalog section

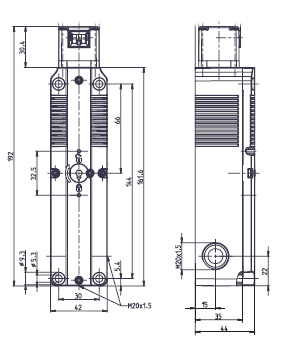

 M49 drawing

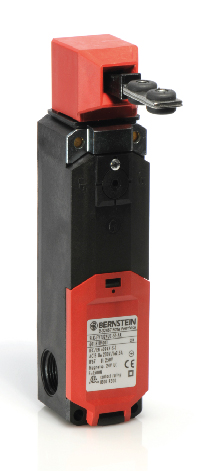

GC

SLK Series

  • Rotary actuating head (4x 90°) as well as horizontal and vertical actuation for complete flexibility
  • Compact design with short overall size of only 170 mm
  • Innovative installation with spring-loaded terminals
  • Interlock facility is integrated in the switch enclosure
  • Locking principle
  • Spring force (closed-circuit current)
  • Magnetic force (working current)
  • Anti-tamper facility due to triple coding

Click to download this catalog section

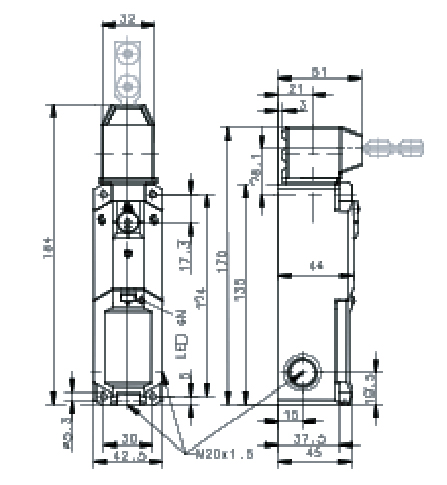

 GC drawing


Solenoid Locking Safety Switch Video
For more information contact Altech at:
908-806-9400 • 908-806-9490 (FAX) • info@altechcorp.com • 35 Royal Road, Flemington, NJ 08822
