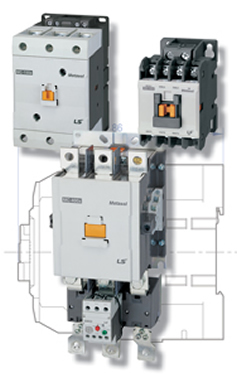

Contactors - MC Series

• Features
  • 8 Frame Sizes
  • 1/2HP up to 600HP @ 600V AC
  • Direct Mounting Overload Relays
  • Optional accessories
    • Additional Auxiliary Contacts
    • Replacement Coils
    • Reversing Wiring Sets and Interlocks
    • Direct Wiring Adaptors for MMS
    • Coil Surge Suppressors
• General Specifications
  • Maximum Voltage: 600V AC
  • Rated Frequency: 50/60Hz
  • Resistance to Vibration: (5-300Hz) > 15g
  • Standards: IEC/EN 60947-1, IEC/EN 60947-4-1, UL508, K60947
  • Certifications: UL, CE
  • Degree of protection: IP20 (Conforming to IEC60529)
  • Operating Temperature: -5°C to +40°C
  • Storage Temperature: -50°C to +80°C
  • Shock Resistance (1/2 sine wave = 11ms): Opened: 8g; Closed: 10g
  • Vibration resistance (Conforming to IEC68-2-6) (5...300 Hz): Opened: 2g; Closed: 4g
  • Flame Resistance: Conforming to UL 94: V-0; Conforming to IEC 695-2-1: 960°C

Mini Contactors

• Features
  • 1 Frame Size
  • 1/2HP up to 10HP @ 600V AC
  • Direct Mounting Overload Relays
  • Optional accessories
    • Additional Auxiliary Contacts
    • Reversing Wiring Sets and Interlocks
    • Coil Surge Suppressors
  • General Specifications
    • 45mm wide
    • Operating Temperature: -5°C to +40°C
